ATV Woods Trailers

Heavy duty pull behind ATV woods trailer, single axle or walking beam (tandem axle), for all your hauling needs.

Designed and built in Nova Scotia, these trailers can handle a big load, and work well in the rough.

Available in single axle and walking beam (tandem axle), in various stages of completion.



  • Single axle galvanized dump trailer
    Single axle galvanized dump trailer
  • 3 Models available: no planking, floor planking, or complete
    3 Models available: no planking, floor planking, or complete
  • Complete model of ATV Woods Trailer
    Complete model of ATV Woods Trailer

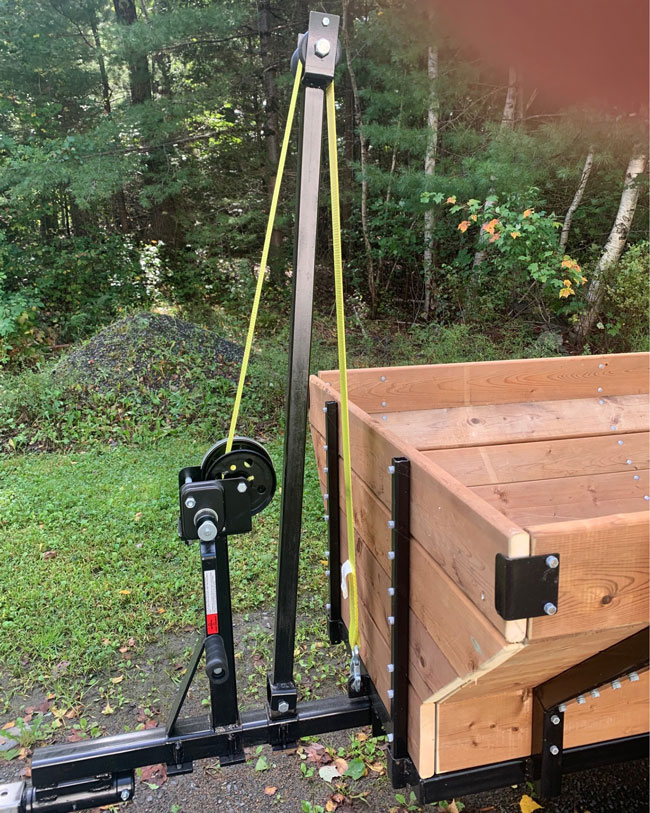

  • Bed planked in model of ATV woods trailer
    Bed planked in model of ATV woods trailer
  • Rear view showing removable tailgate
    Rear view showing removable tailgate

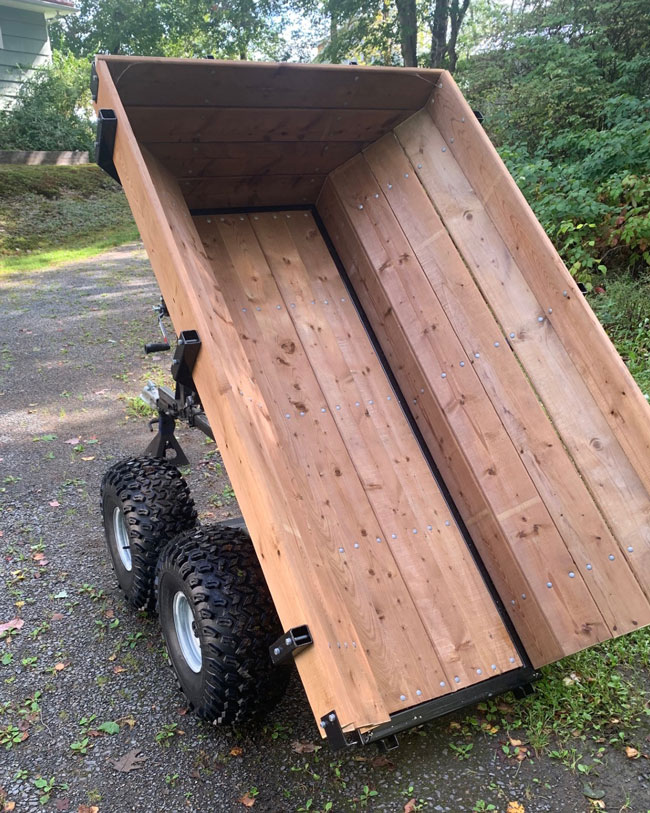

  • Inside of box, tailgate removed, pressure-treated wood
    Inside of box, tailgate removed, pressure-treated wood
  • View of removable tailgate
    View of removable tailgate

Galvanized ATV Woods Trailer (single axle)

Heavy duty galvanized dump trailer with floatation tires that work well in the rough.

The ideal pull behind trailer to head off to the woods with your ATV. Sturdy single axle, galvanized frame, with a high clearance, it can go anywhere your ATV goes.

The woods trailer saves you time and effort everywhere, not just the woods. Use it for landscaping and gardening, construction projects - anywhere you need heavy stuff moved.

Specifications:

  • steel frame: single axle, galvanized frame for durability
  • box measures 24" wide at the base and 48" wide at the top
  • box sides are 21" high.
  • box length: 48" long
  • planking: 1 x 6 pressure treated lumber
  • tongue: 3' tongue with 2" coupler
  • trailer width: 48" wide to the outside of the tires
  • clearance: 12" clearance under the axle
  • tires: 22 x 11 x 8, floatation, mounted on 2000lb 5 bolt spindles
  • box dumps with a removable tailgate
  • all models are predrilled for adding 1" x 6" planking later

Price:

Available in 3 models:
Planked sides and removable tailgate: $875 + HST
Base planking only: $725 + HST
No planking: $675 + HST

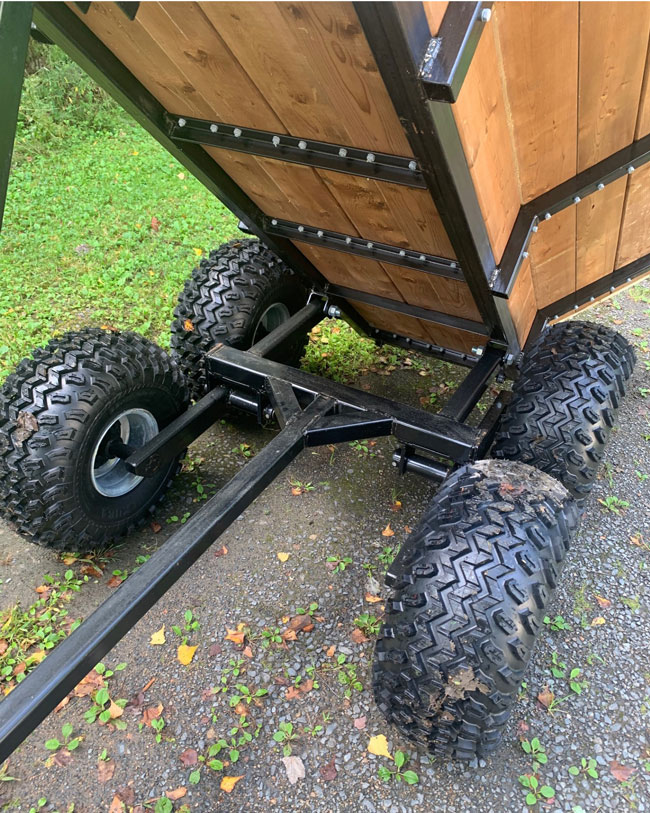

  • Walking beam woods trailer for your ATV
    Walking beam woods trailer for your ATV
  • arry long, large loads safely and securely
    Carry long, large loads safely and securely

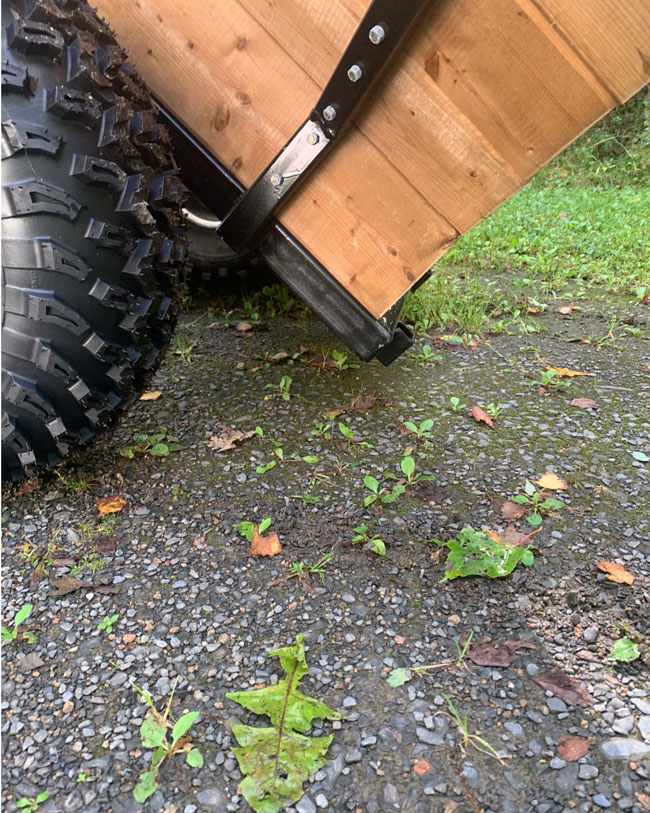

  • Walking beam woods trailer with a swivel hitch
    Walking beam woods trailer with a swivel hitch
  • Tailgate stakes included with all models
    Tailgate stakes included with all models

ATV Walking Beam Woods Trailer

Heavy duty walking beam woods trailer with a swivel hitch, and floatation tires.

The wide floatation tires work better in soft terrain because they do not sink in the ground like highway tires do. The swivel hitch will eliminate damage to the ATV in the event of a trailer roll over.

This walking beam trailer is designed to carry longer loads over rough uneven land.

Guarantee: Once you use a walking beam trailer in the woods, you will not go back to a single axle trailer. You won’t believe how much easier a walking beam trailer pulls in the rough, even loaded.

Specifications:

  • walking beams (tandem axle): 1 ½" x 3 x 3/16" HSS with closed, beveled ends, painted steel frame
  • axles: 1-1/2" cold rolled round bar inside 1 ½" sch 80 pipe, fitted with a grease nipple
  • box measures 24" wide at the base and 48" wide at the top
  • box sides are 24" high
  • box length: 6'-"0 long
  • planking: 1 x 6 pressure treated lumber
  • tongue & hitch: 3' tongue with 2" coupler on a swivel hitch
  • trailer width: 48" wide to the outside of the tires
  • clearance: 12" clearance under the axle
  • tires: 22"x11"x8" 4-ply, floatation, mounted on 2000lb 5 bolt spindles
  • all models are predrilled for adding 1" x 6" planking later

Price:

Available in 3 models:
Planked sides and removable tailgate: $1800 + HST
Base planking only: $1500 + HST
No planking: $1450 + HST

Want to build your own walking beam trailer? I sell the steel walking beam assembly separately.

To order, call Allan: 902-521-7592 or email: Allan Hubley, Outdoor Solutions

We can discuss your order, and make arrangements for delivery.

Terms: Cash and credit card accepted. No refunds on custom work.
