ATV Woods Trailers

Heavy duty pull behind ATV woods trailer, single axle or walking beam (tandem axle), for all your hauling needs. Plus a sturdy wood cart to move your wood inside.

Designed and built in Nova Scotia, these trailers can handle a big load, and work well in the rough.

Available in single axle and walking beam (tandem axle), in various stages of completion.

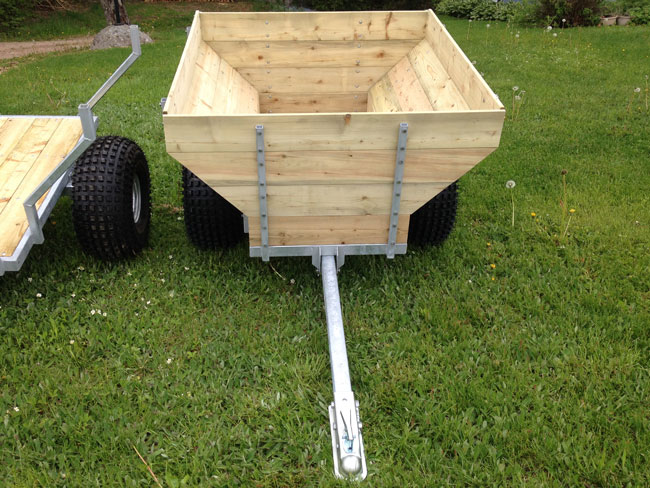

Galvanized ATV Woods Trailer (single axle)

Heavy duty galvanized dump trailer with floatation tires that work well in the rough.

The ideal pull behind trailer to head off to the woods with your ATV. Sturdy single axle, galvanized frame, with a high clearance, it can go anywhere your ATV goes.

The woods trailer saves you time and effort everywhere, not just the woods. Use it for landscaping and gardening, construction projects - anywhere you need heavy stuff moved.

Specifications:

• steel frame: single axle, galvanized frame for durability

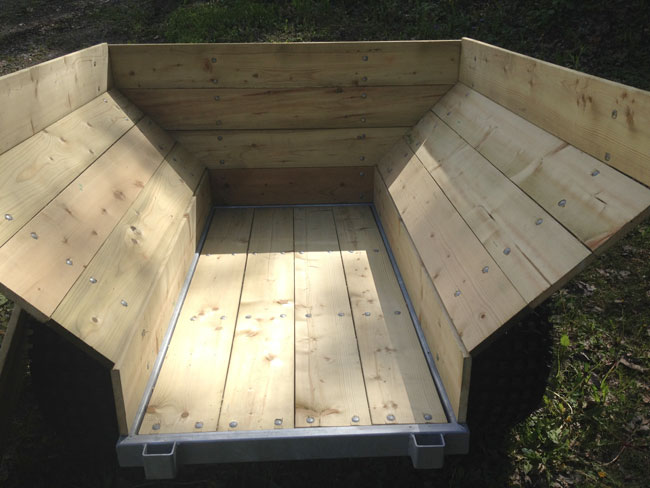

• box measures 24" wide at the base and 48" wide at the top
• box sides are 21" high.
• box length: 48" long
• planking: 1 x 6 pressure treated decking
• tongue: 3' tongue with 2" coupler
• trailer width: 48" wide to the outside of the tires
• clearance: 12" clearance under the axle
• tires: 22 x 11 x 8, floatation, mounted on 2000lb 5 bolt spindles
• all 4 sides are removable

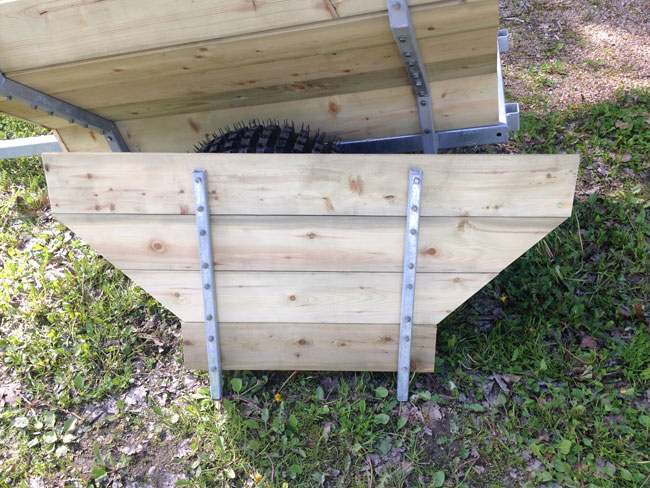

• box dumps with a removable headboard and tailgate
• all models are predrilled for adding 1" x 6" planking later

Price:

Available in a variety of models:

• Completely planked:
  • pressure treated decking: $1,175 + HST*

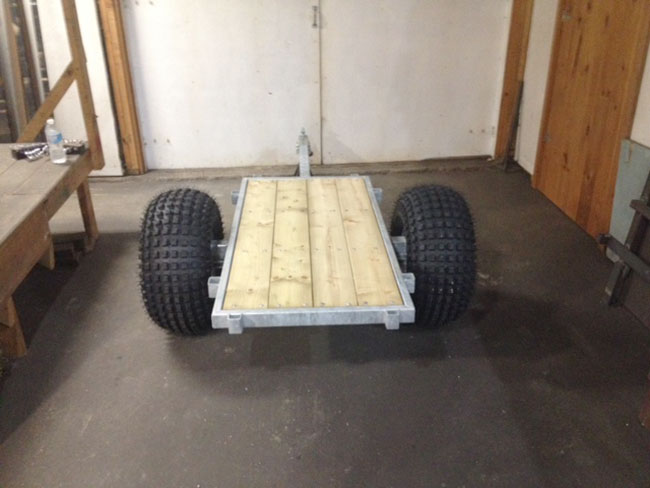

• Base planking only:
  • pressure treated decking: $975 + HST *

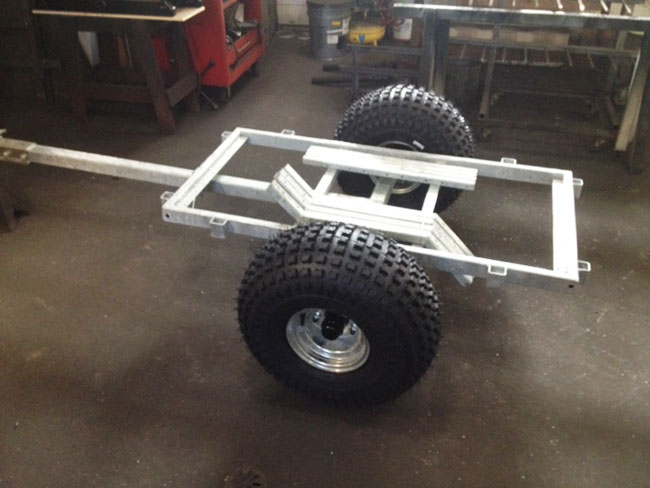

• No planking: $900 + HST *

* Pricing subject to change based on material costs.

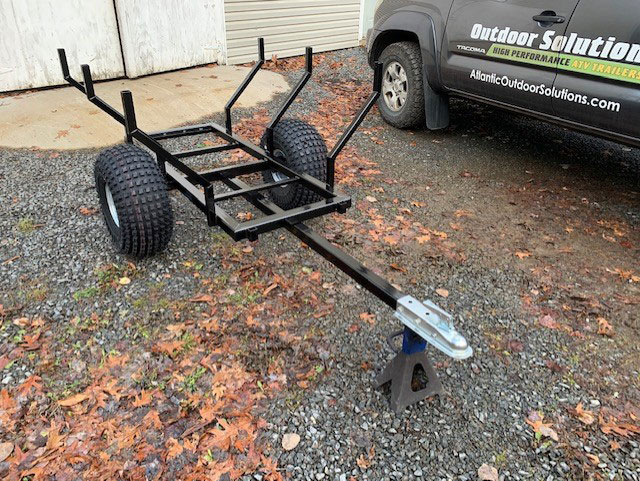

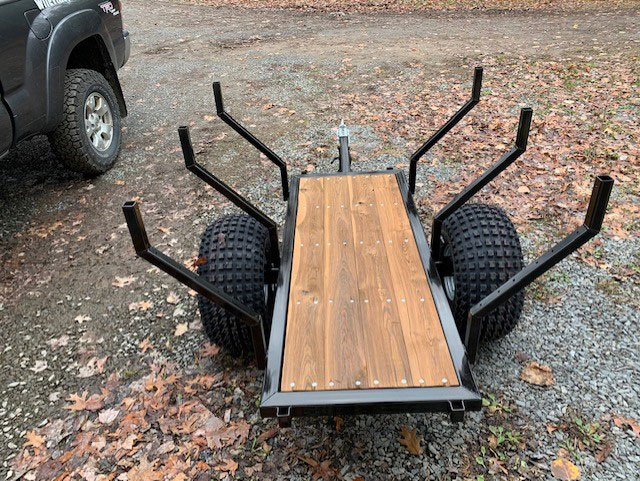

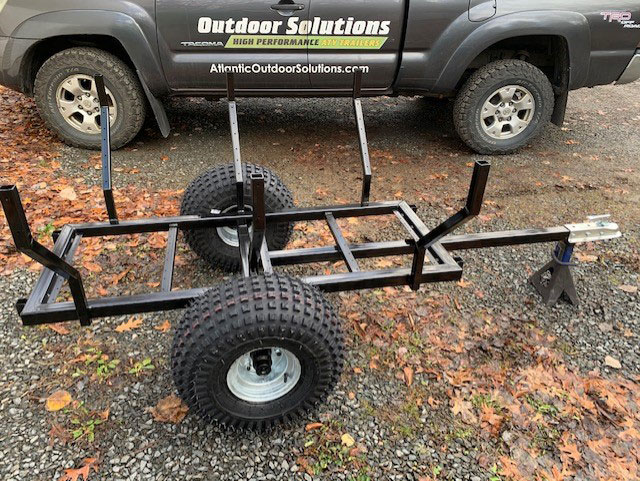

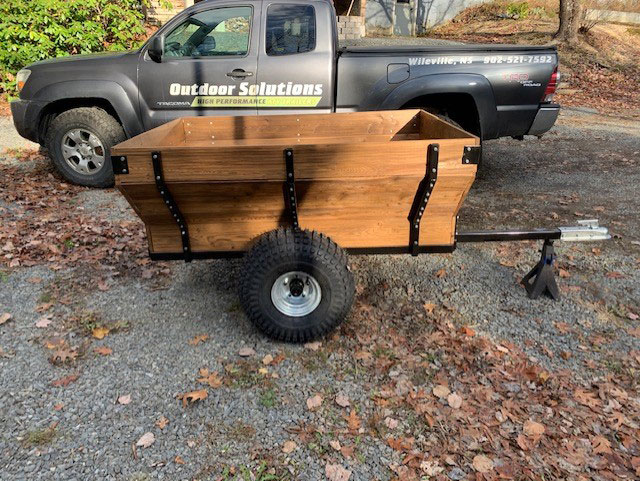

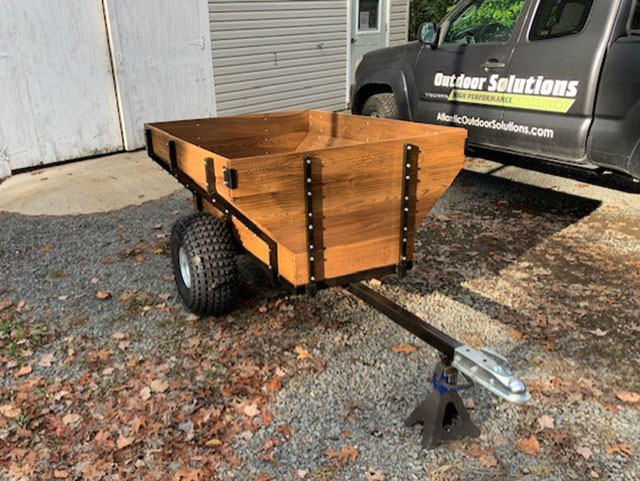

Five Foot ATV Woods Trailer (single axle)

Another heavy duty single axle trailer with floatation tires that work well in the rough.

Designed for those who need a bigger trailer than the galvanized version (above) but the budget won’t support the tandem trailer. Sturdy single axle, non dumping but has a tipping feature, with a high clearance, it can go anywhere your ATV goes.

With a five foot long box, you can carry larger and longer loads. Makes your ATV even more helpful when working in the woods, garden, or on construction projects.

Specifications:

• steel frame: single axle, built for durability
• box measures 24" wide at the base and 48" wide at the top
• box sides are 21" high
• box length: 60" long
• planking: 1 x 6 pressure treated decking
• tongue: 3' tongue with 2" coupler
• trailer width: 48" wide to the outside of the tires
• clearance: 12" clearance under the axle
• tires: 22 x 11 x 8, floatation, mounted on 2000lb 5 bolt spindles
• headboard and tailgate are removable
• all models are predrilled for adding 1" x 6" planking later

Price:

Available in a variety of models:

• Completely planked:
  • pressure treated decking: $1,325 + HST*

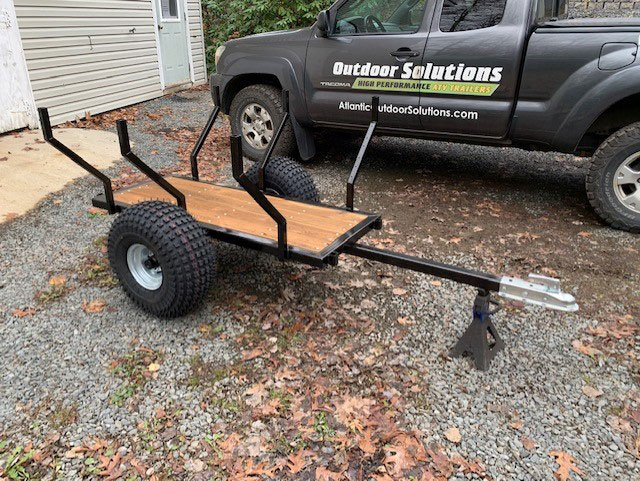

• Base planking only:
  • pressure treated decking: $1,025 + HST *
• No planking: $900 + HST *

* Pricing subject to change based on material costs.

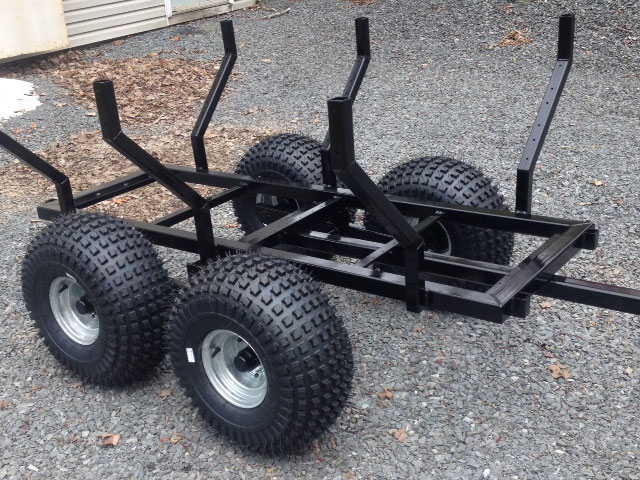

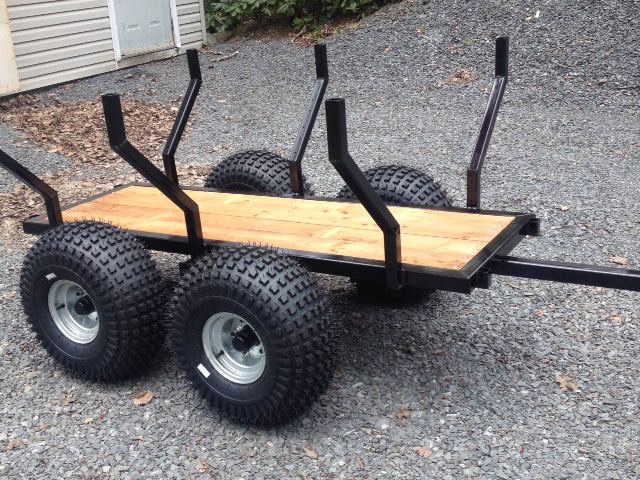

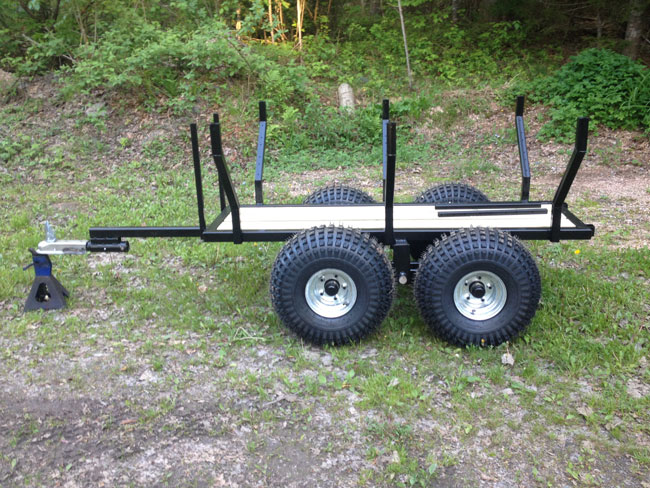

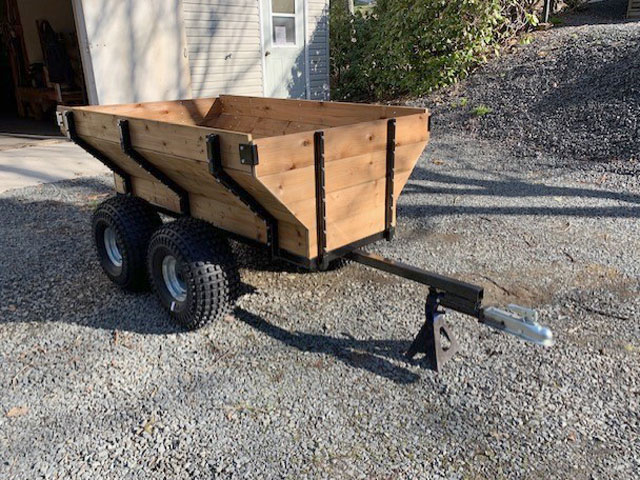

ATV Walking Beam Woods Trailer

Heavy duty walking beam woods trailer with a swivel hitch, and floatation tires.

The wide floatation tires work better in soft terrain because they do not sink in the ground like highway tires do. The swivel hitch will eliminate damage to the ATV in the event of a trailer roll over.

This walking beam trailer is designed to carry longer loads over rough uneven land.

Guarantee: Once you use a walking beam trailer in the woods, you will not go back to a single axle trailer. You won’t believe how much easier a walking beam trailer pulls in the rough, even loaded.

Specifications:

• walking beams (tandem axle): 1 ½" x 3 x 3/16" HSS with closed, beveled ends, painted steel frame
• axles: 1-1/2" cold rolled round bar inside 1 ½" sch 80 pipe, fitted with a grease nipple
• box measures 24" wide at the base and 48" wide at the top
• box sides are 21" high
• box length: 6'-"0 long
• head board and tailgate removable
• planking: 1 x 6 pressure treated decking

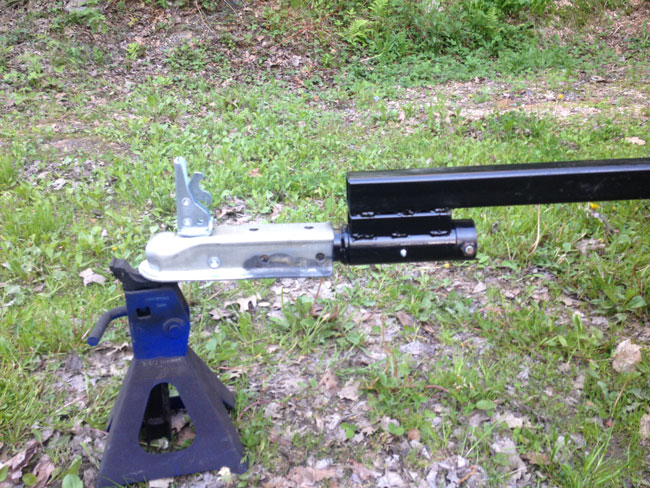

• tongue & hitch: 3' tongue with 2" coupler on a swivel hitch
• trailer width: 48" wide to the outside of the tires
• clearance: 12" clearance under the axle
• tires: 22"x11"x8" 4-ply, floatation, mounted on 2000lb 5 bolt spindles
• all models are predrilled for adding 1" x 6" planking later

Price:

Available in a variety of models:

• Completely planked:
  • pressure treated decking: $2,325 + HST *

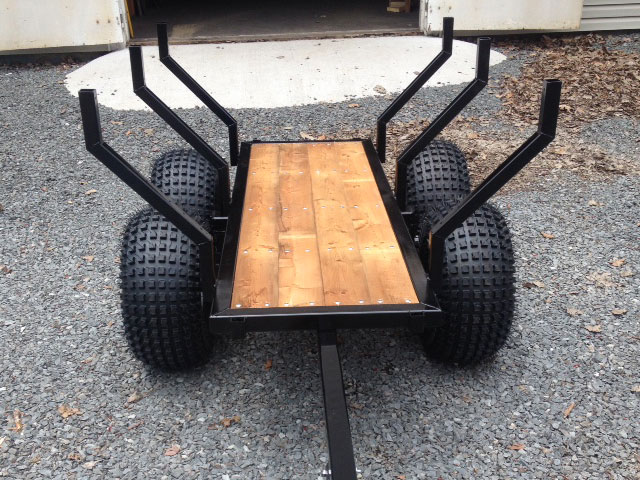

• Base planking only:
  • pressure treated decking: $2,075 + HST *
• No planking: $1,975 + HST *

* Pricing subject to change based on material costs.

Want to build your own walking beam trailer? I sell the steel walking beam assembly separately.

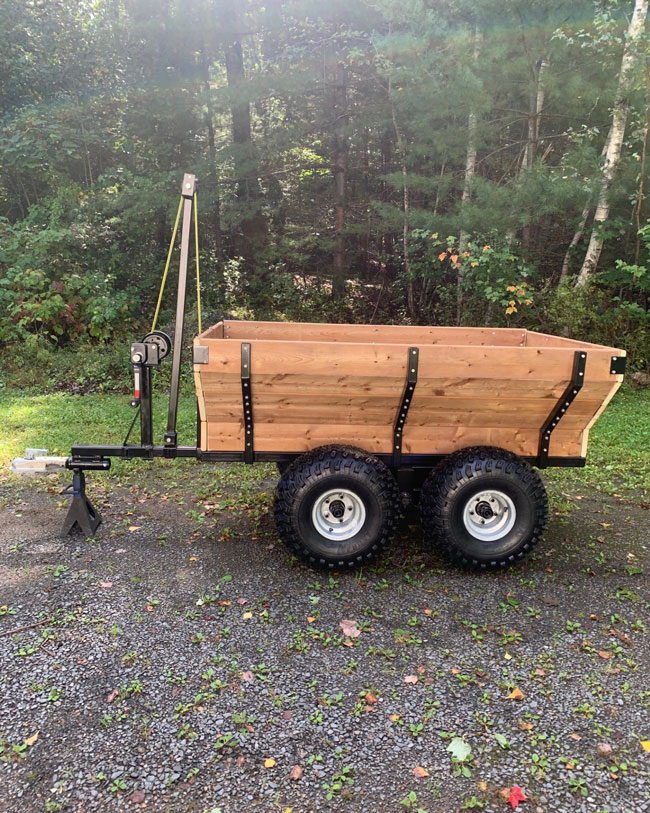

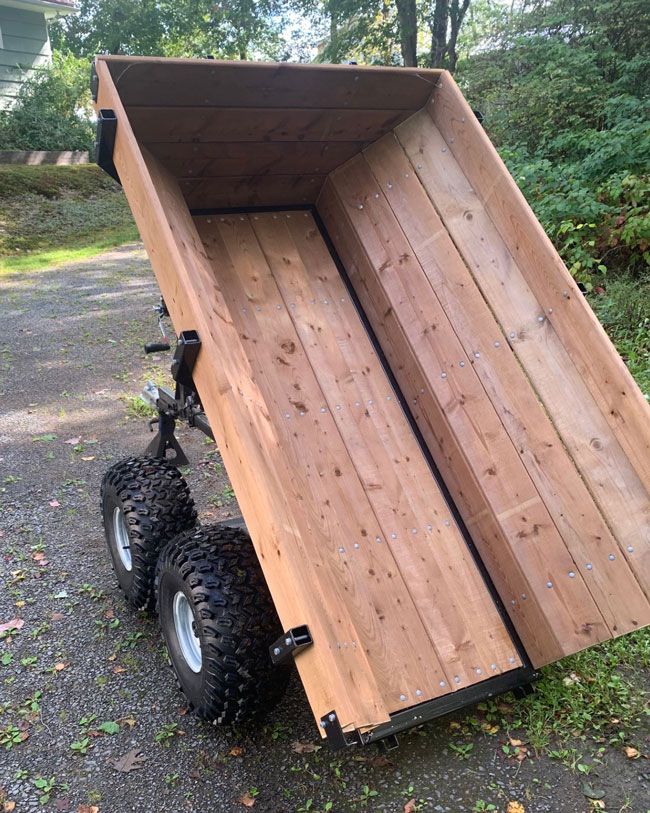

ATV Tandem Dump Trailer

This is a walking beam dump trailer with a swivel hitch.

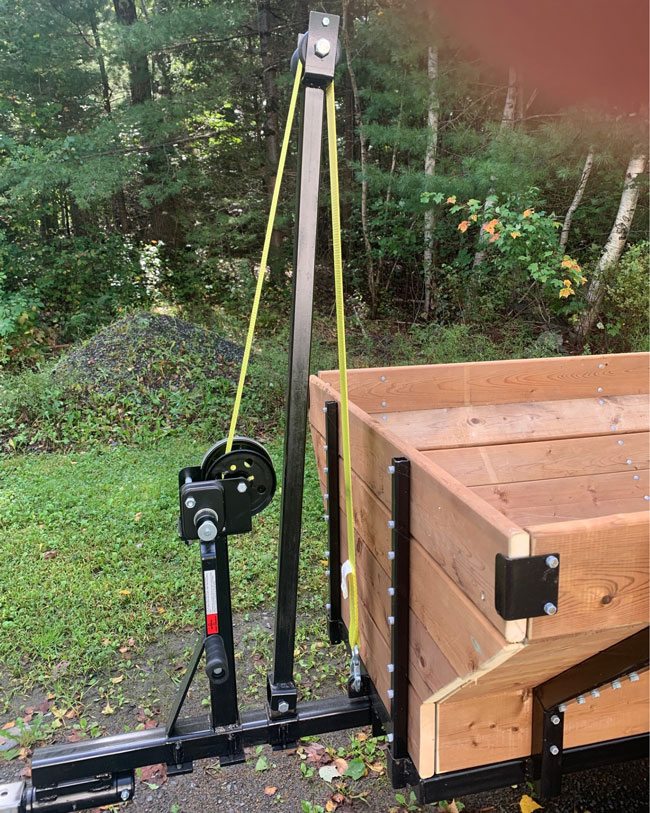

The dump operates by a hand winch with a nylon strap that goes over a pole and connects to the front of the bed.

The winch has an automatic brake which will not let the bed freefall.

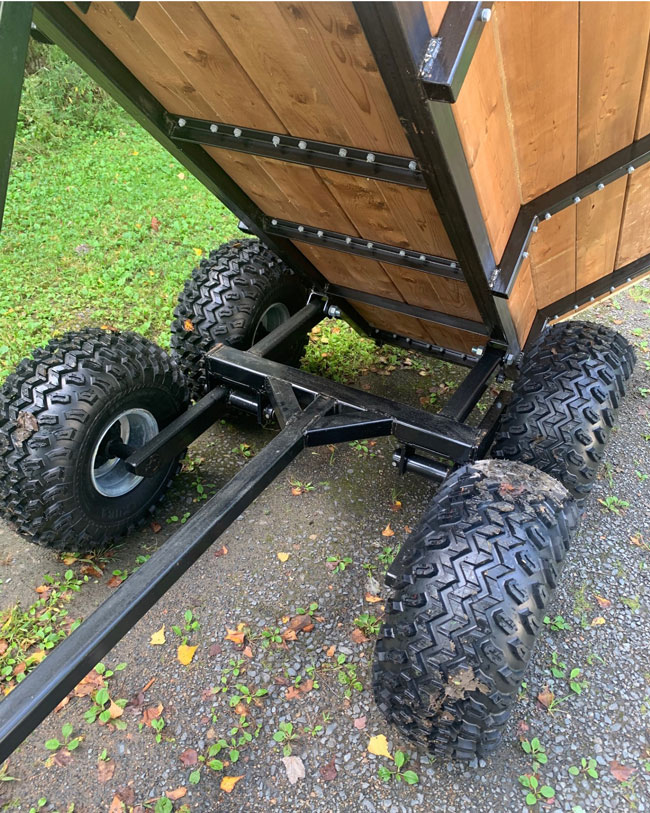

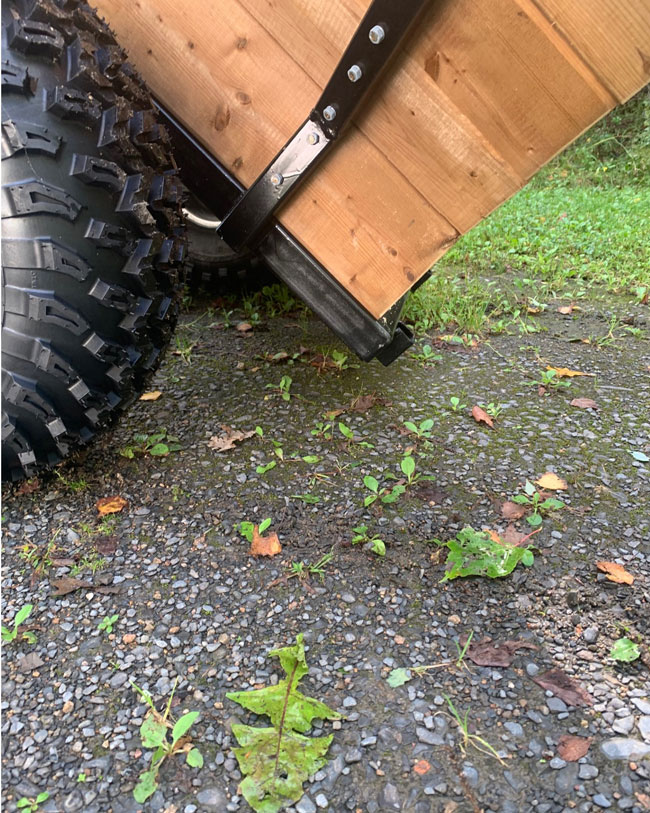

In the dump position, the box tilts to at least 45 degrees, yet doesn’t touch the ground.

Specifications:

• walking beams (tandem axle): 1 ½" x 3 x 3/16" HSS with closed, beveled ends, painted steel frame
• axles: 1-1/2" cold rolled round bar inside 1 ½" sch 80 pipe, fitted with a grease nipple
• box measures 24" wide at the base and 48" wide at the top
• box sides are 21" high
• box length: 6'-"0 long
• planking: 1 x 6 pressure treated decking
• tongue & hitch: 3' tongue with 2" coupler on a swivel hitch
• trailer width: 48" wide to the outside of the tires
• clearance: 12" clearance under the axle
• tires: 22"x11"x8" 4-ply, low-pressure mounted on 2000lb 5 bolt spindles
• all models are predrilled for adding 1" x 6" planking later

Price:

Available in a variety of models:

• Completely planked:
  • pressure treated decking: $2,725 + HST *
• Base planking only:
  • pressure treated decking: $2,475 + HST *
• No planking: $2,375 + HST *

* Pricing subject to change based on material costs.

Want to build your own walking beam trailer? I sell the steel walking beam assembly separately.

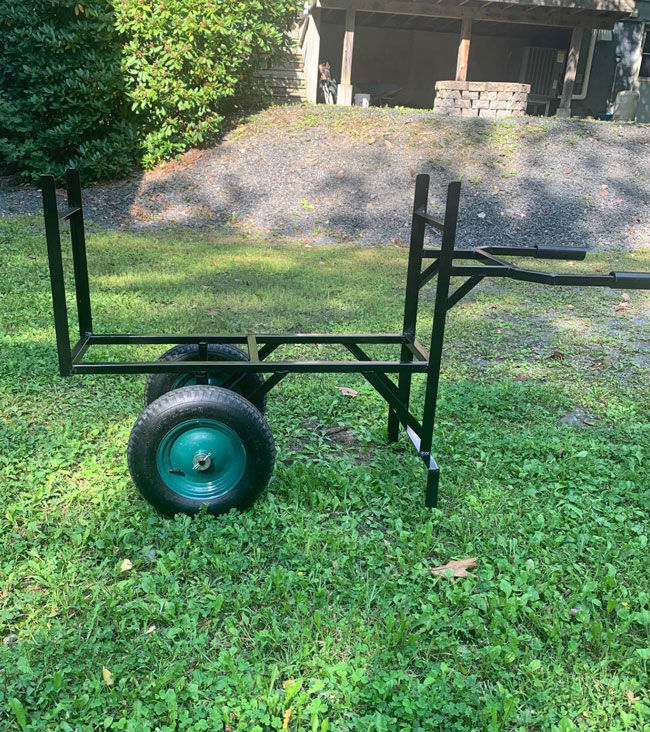

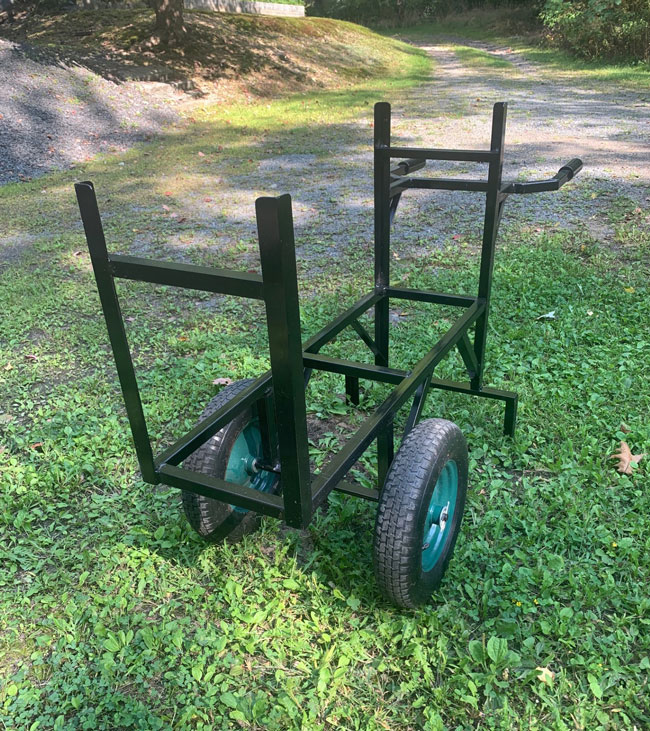

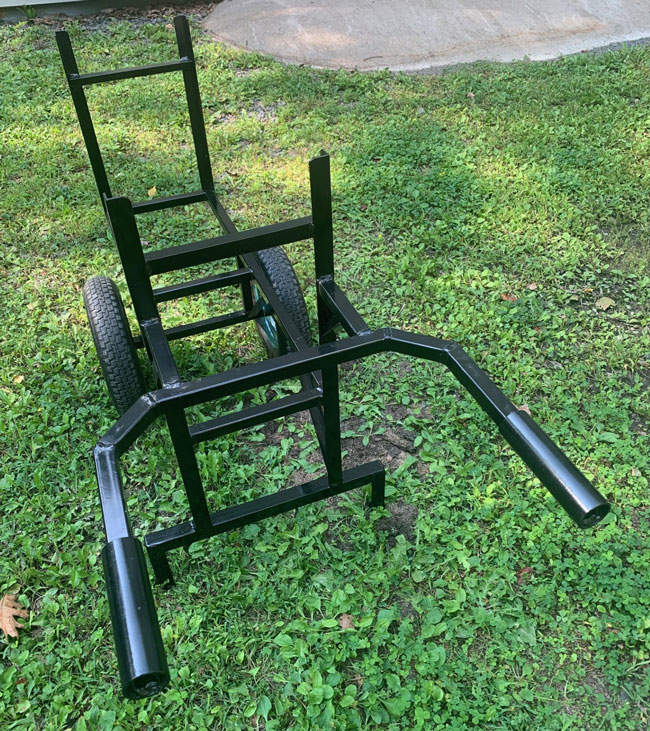

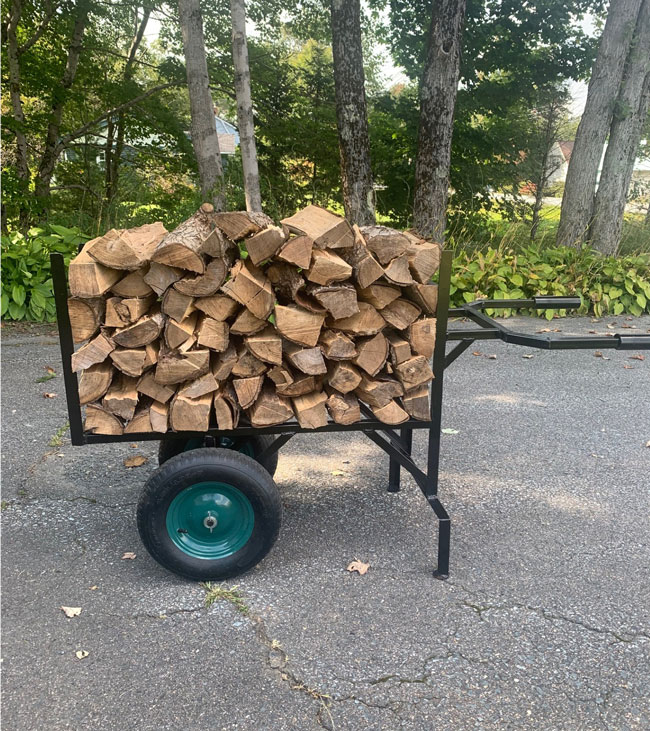

Wood Cart

This unit is designed to be the replacement of a wheelbarrow for transporting firewood.

It has two wheels for stability, and will hold more firewood than a wheelbarrow. No more wood rolling off the load and landing in front of the wheel.

The Wood Cart is only 20 inches wide and will easily fit through a doorway without striking the door casing.

The capacity is 3 feet long and 18 inches high.

Price:

$200.00 + HST
